In modern industrial systems logistics automation centers, steel processing units, manufacturing plants, and continuous material handling environments rotating assets operate under sustained thermo-mechanical stress, cyclic loading, torsional variation, and dynamic imbalance.

A single rolling-element bearing operating at 1,800 RPM completes over 2.5 million revolutions per day. Even microscopic surface fatigue (on the order of microns) can evolve into macro-spalling under repeated Hertzian contact stress. When undiagnosed, such defects propagate into shaft eccentricity, housing vibration, lubricant contamination, and eventual seizure.

According to reliability studies across heavy industry, unplanned downtime contributes to 5–20% productivity loss annually, with rotating machinery accounting for a dominant share of mechanical failure events. The U.S. Department of Energy estimates that predictive maintenance strategies can reduce breakdowns by 70–75% when correctly implemented yet many deployments plateau at anomaly detection rather than mechanistic understanding.

Traditional vibration monitoring systems trigger alerts based on threshold exceedance. However, under dynamic industrial loading, anomaly detection without spectral interpretation and contextual reasoning results in high diagnostic ambiguity.

Under these high-variability conditions, AI-driven multimodal root cause intelligence emerges not as a dashboard layer, but as a physics-aware reasoning system integrated into maintenance workflows.

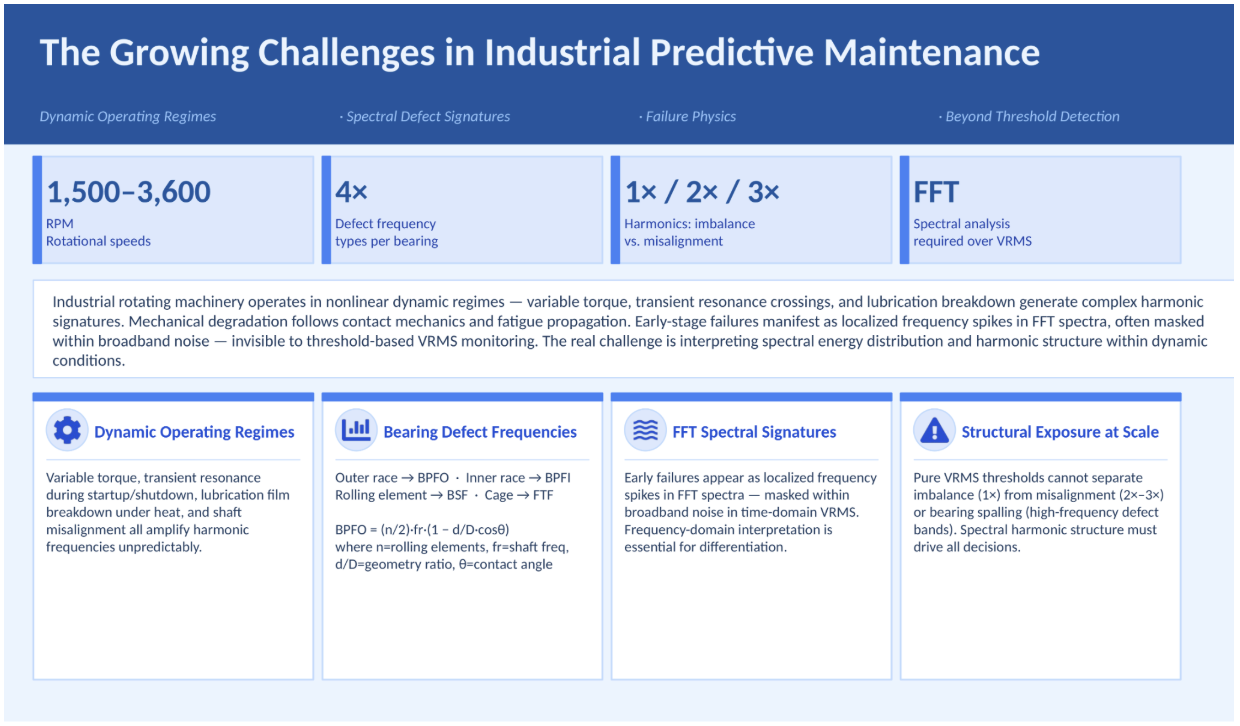

The Growing Challenges in Industrial Predictive Maintenance

Industrial rotating machinery operates in nonlinear dynamic regimes characterized by:

The challenge is not simply detecting vibration amplitude it is interpreting spectral energy distribution and harmonic structure within dynamic operating conditions.

Limitations of Traditional Predictive Maintenance Systems

Conventional systems rely on:

• VRMS amplitude thresholds (ISO 20816-1 classification)
• Temperature upper bounds
• Periodic oil analysis
• Manual spectral review by vibration analysts

These approaches face structural limitations.

Loss of Spectral Granularity

VRMS compresses vibration energy into a scalar value, eliminating frequency-domain information necessary for defect classification.

Signal-to-Noise Interference

Industrial environments introduce:

• Structural resonance amplification
• Background mechanical coupling
• Transient impact noise
• Electrical interference

Rule-based alerts cannot adapt to dynamic noise profiles.

Static Documentation Dependency

OEM manuals contain detailed fault trees, but remain:

• Textually dense
• Unindexed semantically
• Disconnected from live sensor data

Technicians manually correlate symptoms with documentation introducing delay and cognitive overload.

Diagnostic Uncertainty in Early Failure Phases

Incipient bearing defects often present as subtle high-frequency modulation rather than large amplitude spikes. Early detection requires contextual modeling beyond fixed thresholds.

As a result, facilities experience:

• Elevated false positives
• Undetermined root causes
• Repeat failures due to misdiagnosis

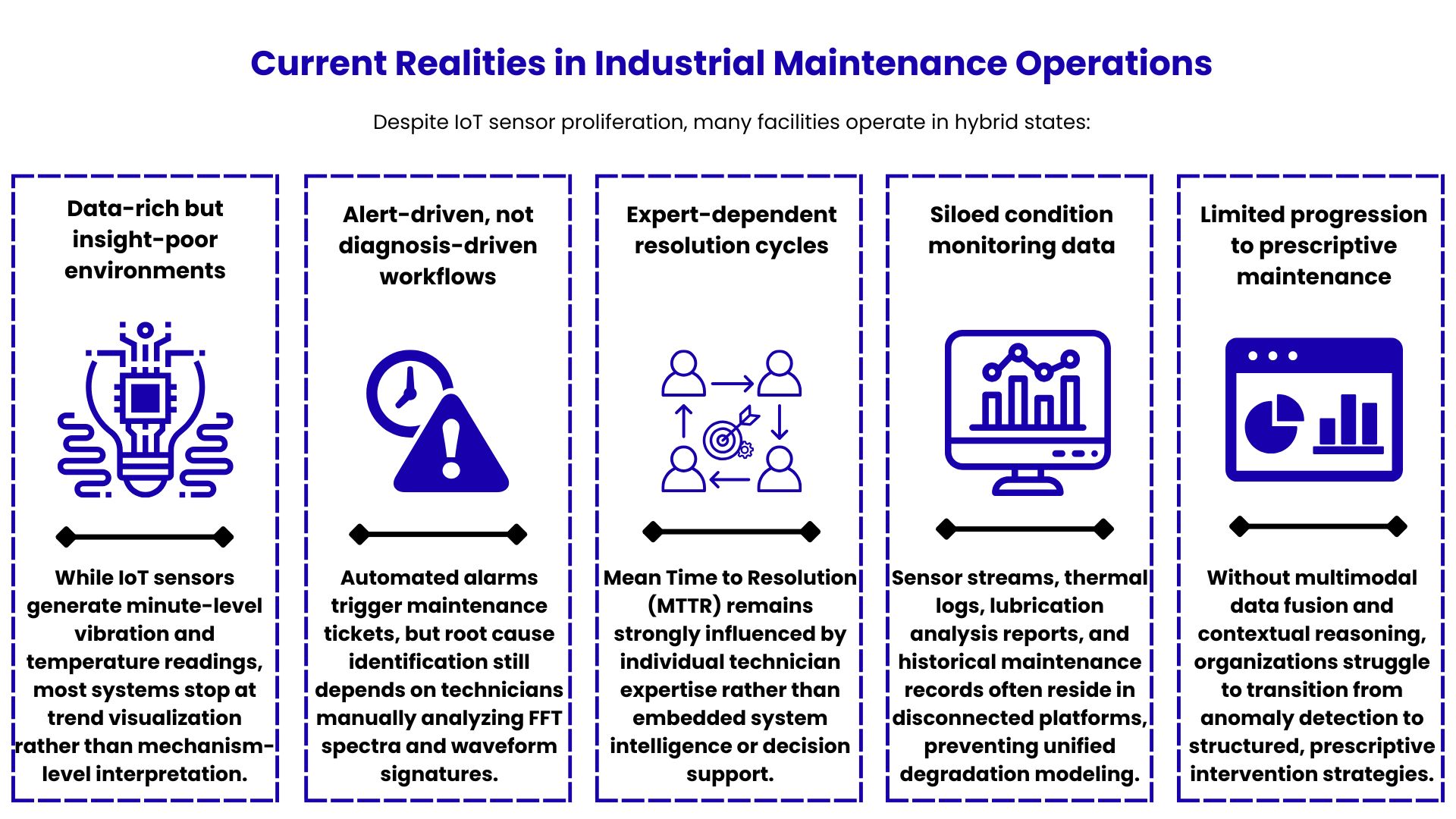

Current Realities in Industrial Maintenance Operations

Despite IoT sensor proliferation, many facilities operate in hybrid states:

This fragmentation limits transition from predictive monitoring to prescriptive intervention.

Key Challenges for Modern Diagnostic Systems

High-Dimensional Time-Series Complexity

Vibration signals are high-frequency signals (kHz range) requiring:

• Fast Fourier Transform (FFT)
• Envelope detection
• Kurtosis analysis
• Crest factor monitoring
• Spectral entropy evaluation

Manual interpretation of these parameters does not scale across hundreds of assets.

Multimodal Diagnostic Signals

Root cause signals span:

• Frequency-domain vibration signatures
• Thermal gradient anomalies
• Visual surface damage
• Acoustic emission irregularities
• Historical maintenance recurrence

Traditional systems cannot synthesize these modalities into unified inference.

Rare Failure Class Imbalance

Certain catastrophic failures occur in <1% of assets annually, limiting labeled datasets for supervised modeling.

Infrastructure Integration Constraints

SCADA, CMMS, and IoT platforms often lack AI-native interoperability for contextual reasoning.

How Multimodal AI Changes the Game

Multimodal AI introduces physics-aware contextual reasoning across structured and unstructured industrial data.

Spectral Feature Extraction and Pattern Recognition

AI models analyze:

• FFT frequency peaks
• Harmonic ratios
• Sideband modulation
• Envelope spectrum signatures
• Temporal degradation slopes

Instead of single-value VRMS, models interpret full spectral fingerprints.

Failure Mode Classification

Deep learning models trained on labeled vibration spectra classify:

• Imbalance
• Angular misalignment
• Parallel misalignment
• Bearing outer/inner race defects
• Lubrication starvation
• Structural looseness

Probabilistic outputs rank likely mechanisms rather than issuing binary alarms.

Generative Diagnostic Reasoning

Using large language models (LLMs), the system:

• Explains mechanical reasoning behind identified patterns
• Correlates temperature rise with lubrication viscosity breakdown
• References OEM torque tolerances
• Suggests targeted inspection checkpoints

Multimodal RAG Integration

Text and image content from manuals are embedded into vector databases. Reciprocal Rank Fusion improves retrieval robustness across semantically similar queries.

Image embeddings allow cross-reference of uploaded bearing photos with documented defect imagery.

Audio and Acoustic Modeling

Abnormal acoustic emissions (e.g., high-frequency squeal from dry bearings) are transcribed and contextualized into diagnostic hypotheses.

The system moves from “vibration is high” to:x

“Dominant spectral energy at BPFO with increasing kurtosis suggests early-stage outer race spalling; elevated temperature indicates lubrication degradation. Recommend inspection within the defined operating window.”

Where Intelligent Root Cause Intelligence Matters

In automated logistics hubs processing 10,000+ parcels per hour, a single failed motor may halt entire conveyor loops.

In continuous manufacturing:

• A misdiagnosed imbalance may evolve into shaft bending.
• Bearing seizure can damage housings and coupling assemblies.
• Secondary damage multiplies repair cost exponentially.

Reducing MTTR by 25% in high-volume facilities can prevent cascading downtime losses worth millions annually.

Early root cause clarity prevents:

• Secondary mechanical propagation
• Spare part overconsumption
• Emergency shutdown procedures
• Production backlog ripple effects

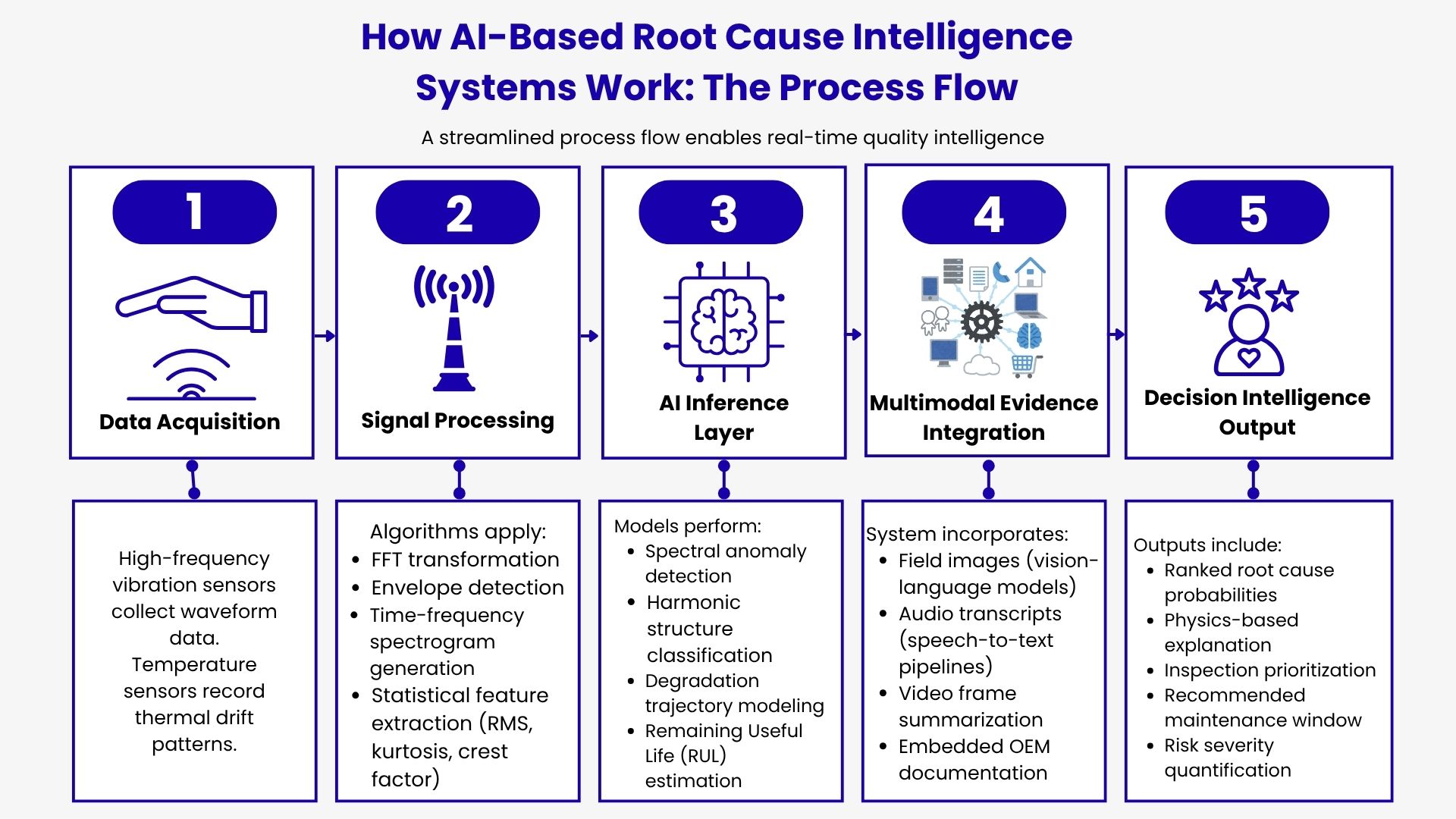

How AI-Based Root Cause Intelligence Systems Work: The Process Flow

Measurable Impacts of Multimodal AI-Driven Predictive Maintenance

Industrial deployments demonstrate:

• Around 30–50% reduction in diagnostic time
• Around 20–40% reduction in secondary damage events
• Around 10–20% increase in asset availability
• Around 15–25% reduction in maintenance labor overhead
• Extended bearing life through early intervention

ROI models show payback periods within 6–12 months in high-throughput environments.

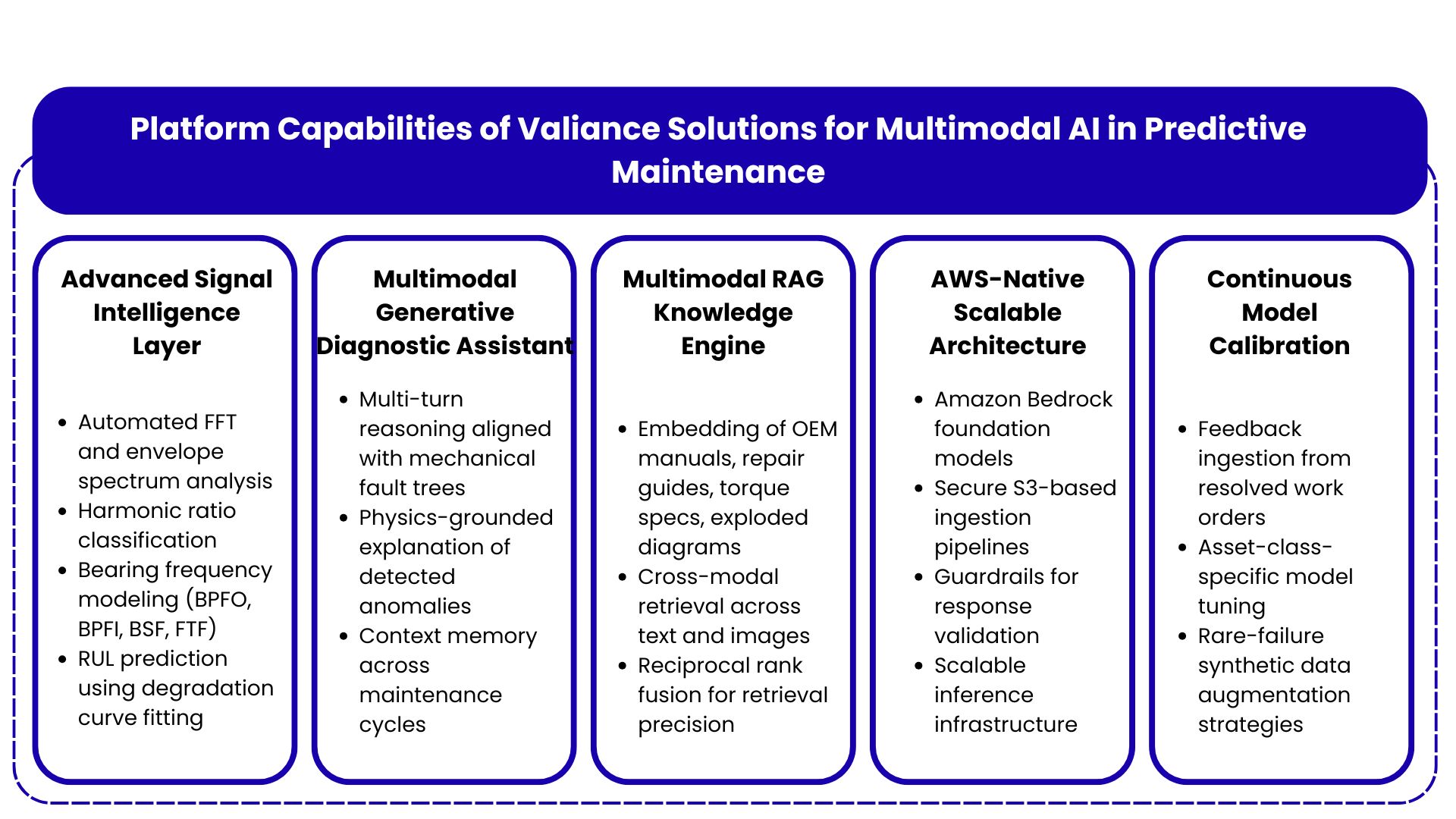

Platform Capabilities of Valiance Solutions for Multimodal AI in Predictive Maintenance

Valiance Solutions delivers an industrial-grade multimodal AI architecture engineered for high-frequency mechanical diagnostics.

By embedding spectral analytics, multimodal reasoning, and knowledge-grounded generative AI into maintenance operations, Valiance transitions predictive maintenance from:

Threshold-based alerting

Spectral-aware diagnosis

Physics-informed root cause intelligence

Predictive reliability optimization
